FIREPLACE INSTALLATION

Dimplex Mantel Surround Kit

1. Install the fireplace assembly only into the Dimplex outdoor mantel.

(refer to mantel assembly instructions)

2. Select a suitable location that is level and away from high traffic

New Wall Construction

NOTE: This unit must be removable from opening.

1. Select a suitable location.

2. The fireplace insert comes completely assembled and wired. Some tools may be required

to prepare the site and assembly.

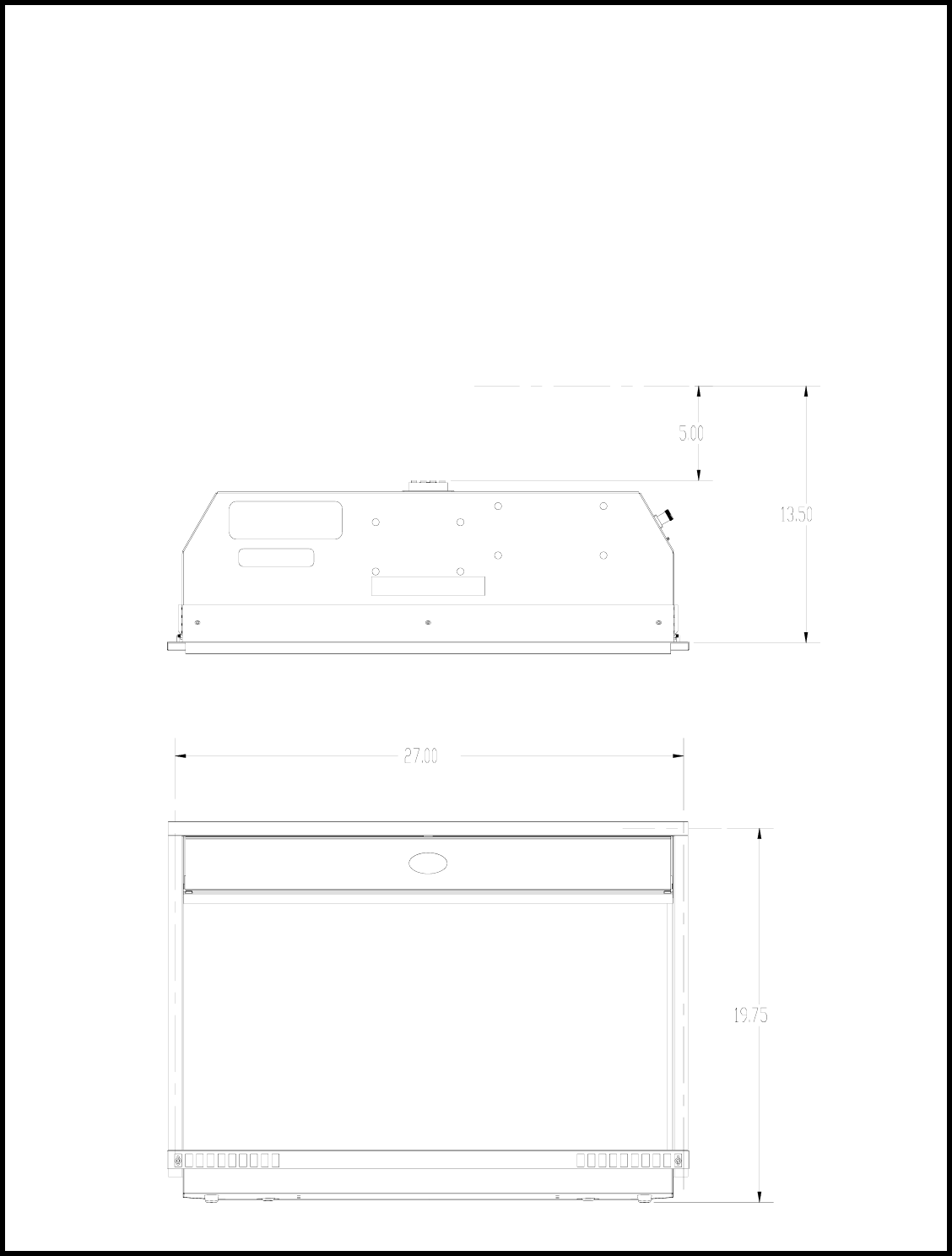

The dimensions of the required opening are 27” wide X 19.75” high X 13.50” deep.

(FIGURE 3).

This fireplace does not require any venting.

Figure 3

5” clearance for transformer

and GFI receptacle

1 2 3 4 5 6 7 8 9 10
